Technical parameters & characteristic :
- Working environment:
2.The rated voltage:100V~~250V
3.Rated current:10A,13A,16A,20A
- Characteristic:
| 1 | Model | FZ-517 | 6 | HS Code | 8536690000 |
| 2 | Brand Name | Safewire or OEM brand | 7 | Market standard | Customized |
| 3 | Type | Desktop socket | 8 | Place of origin | Zhejiang , Wenzhou, China |
| 4 | Color | black | 9 | Frequency | 50Hz~60Hz |
| 5 | Grounding | Standard grounding | 10 | Current Type | AC |
- Technical parameters :
| Serial No. | Parameter | Description |
| 1 | Panel Material | Aluminum alloy |
| 2 | Surface finish | black |
| 3 | Panel Dimension(mm) | 240x120 |
| 4 | Cutout(mm) | 231x112 |
| 5 | Height of product(mm) | 70 |
| 6 | Bottom box size(mm) | 229*110*70 |
| 7 | Bottom box material | Plastic |
| 8 | Capacity of modules /Interface size | 6 ways 45*45mm modules |
| 9 | Configuration | Power outlet+Data outlet or USB charging : Customized as required |
| 10 | Cable length | 1.5m, 2m, or required length |
Features:
1.More reliable surface finish protect from scratch.
2.Easy Installation:Only need two screw the bottom box through hole of panel and Fast-wiring.
3.Save labor cost,save money:Replace modules no need to change complete desktop socket.
4. Can be with more schuko/BS/French/Universal/US socket and USB charger, CAT6 and CAT3 etc.
5.Aluminum alloy material production,very light weight, and not easy to hurt the hand.
6.Corrosion resistant.

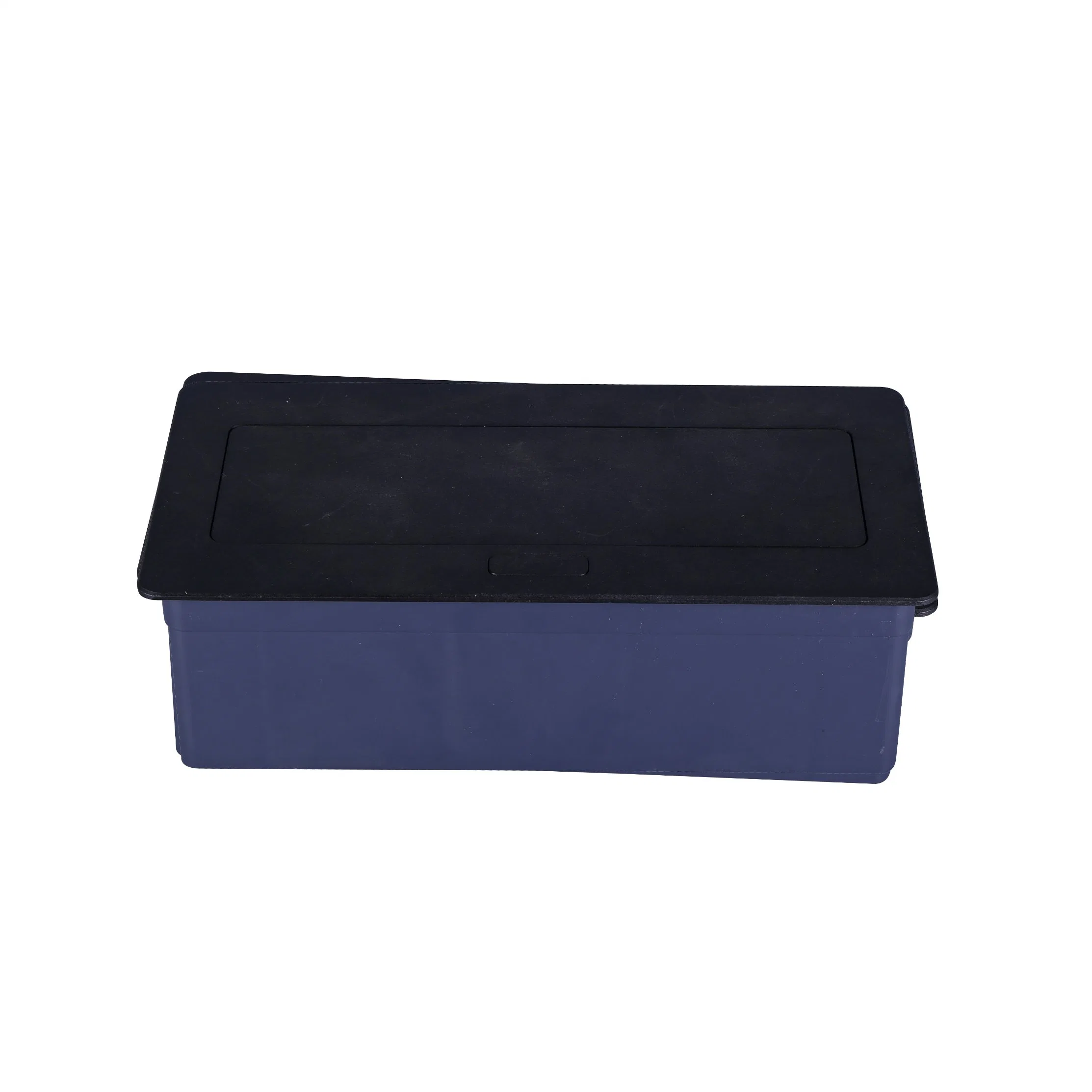

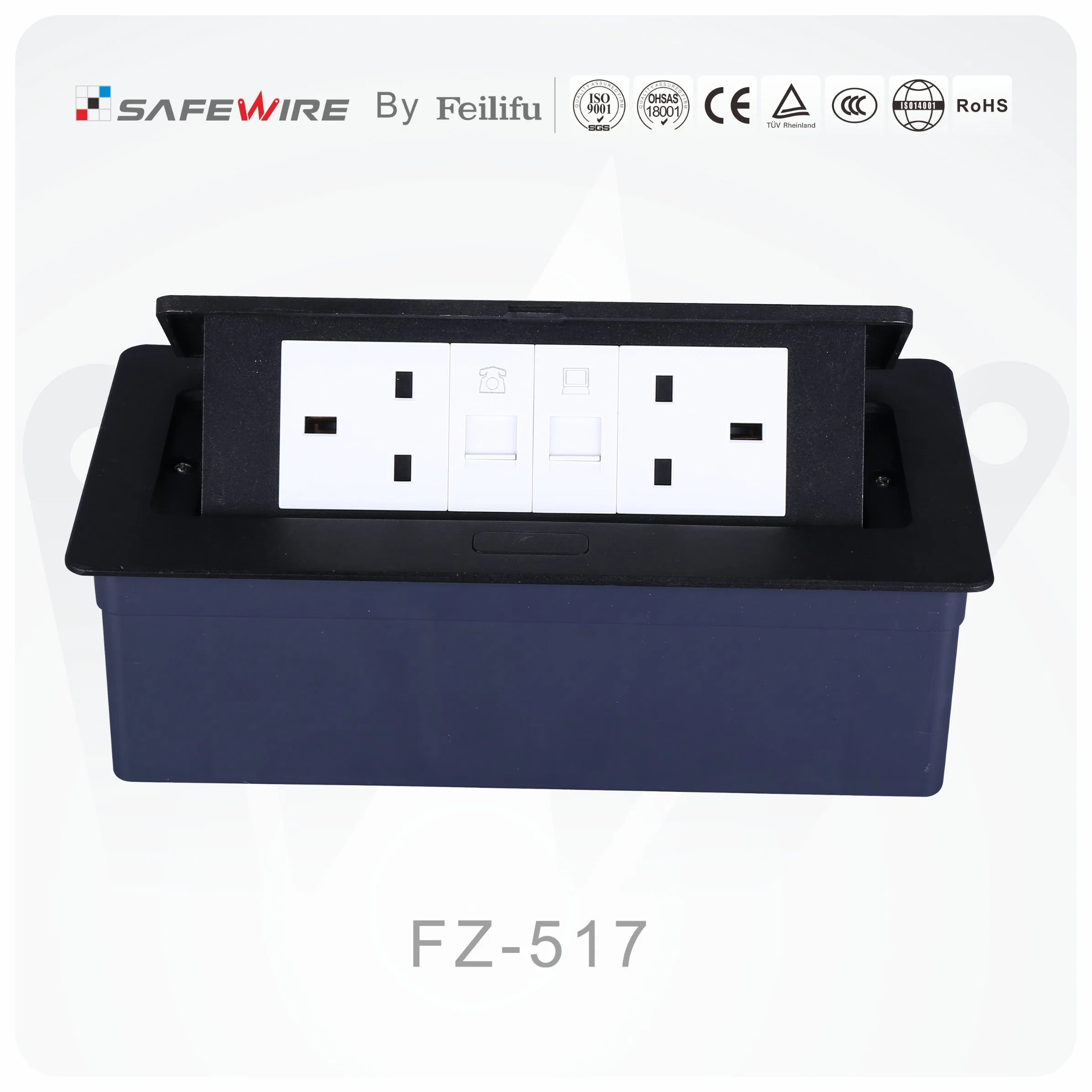

Product Show:
FZ-517 Outline drawing:
vailable for 45*45mm type international sockets or modules types:
Attentions:
1.Prevent from corrosive liquid, gas (strong acid, strong alkali, paint)and humidity.
2. All dimension quoted are nominal only. Drawings , images and text are for illustrative perposes only and product details and dimension are subject to change without notice.
Safety Warning:
1)This is a class I product and must be earthed
2)This product must be installed/wired by a qualified electrician
3)before installation/maintnance ,ensure the mains supply is switched off and the circuit fuses are removed or circuit breakers switch off
4)For indoor use only
Company introduction:
Safewire Electrical by Feilifu which is professional OEM manufactory of floor boxes ,desktop socket and electrical accessories for most global brand since 1998 in China . Our Factory by Feilifu is the only one produce full range of floor socket, desktop socket , switch socket and electrical accessories. Factory is granted by ISO9001, ISO14001 and OSHAS18001 system and product is certified by TUV , Germany.
The product line:
CQC Qualified Test Center:
Certificate:
The Canton Fair
FAQ:
Q: How many sockets can you intall into FZ517 desktop socket ?
A: Can be installed 3 BS socket or 2 US socket + 2 USB socket.
Q:What colors do you have about FZ517 desktop socket?
A:We have three colors, black,white,silver
Q:Do you have any certification about FZ517 ?
A: FZ517 desktop socket is certified by TUV , Germany. We have CE certification.
Q:Can I request a sample from Safewire?
A:Safewire are happy to supply sample to our partners, please contact us directly to discuss your request.
Q:What lead times do you offer?
A: Lead time is dependent on many factors including type of unit and quantity required. We stock an extensive range of core product in a number of sizes that can be available 14 working days.Lead time indications are stated on quotations, but by all means feel free to ask for up to date information.
Q:How long is the warranty on your products?
A:There is a 12 month warranty from date of delivery. In the event of any failure, items must be returned to Safewire for full investigation.
Q:Where can your product be used
A:office or meeting room or the hotel project or other
