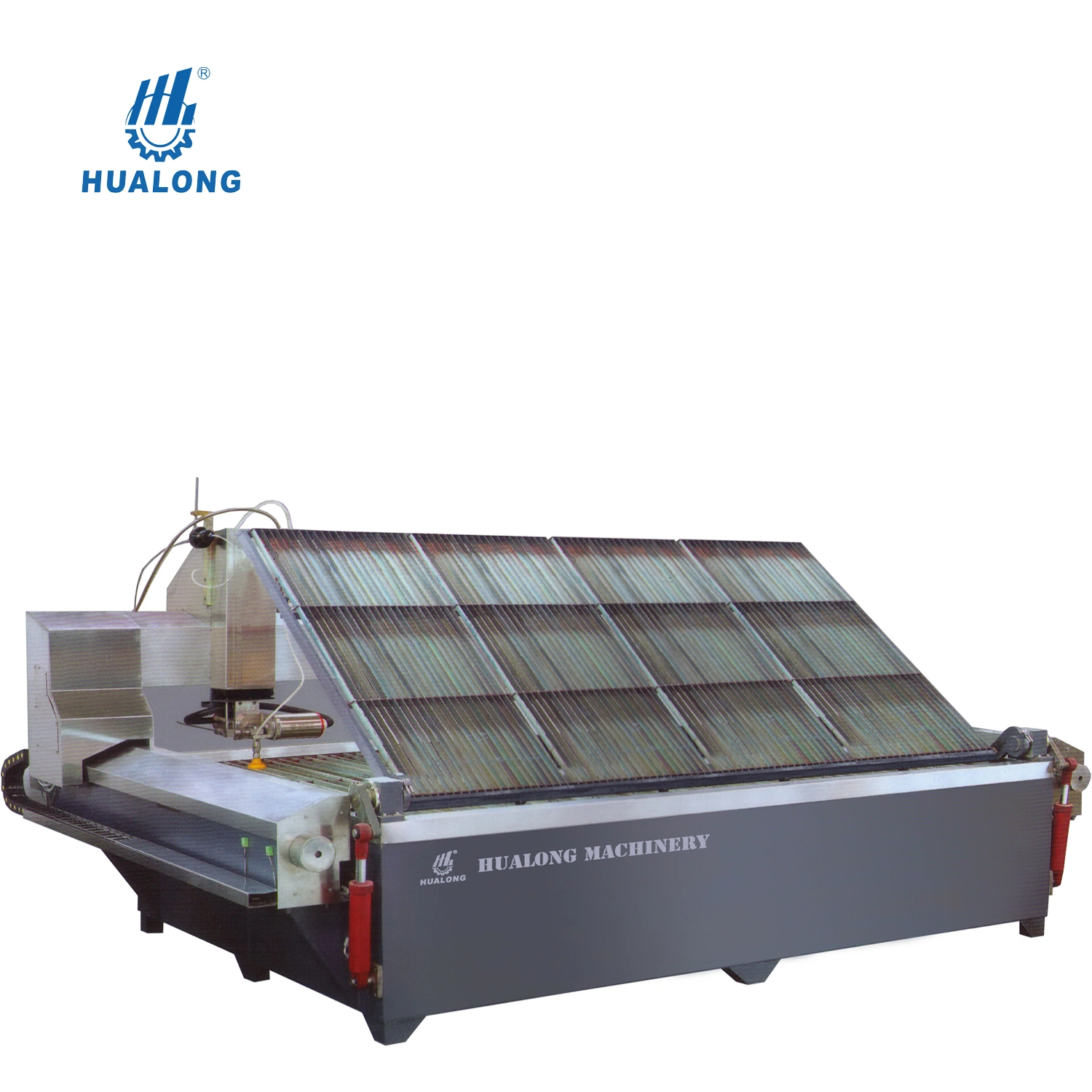

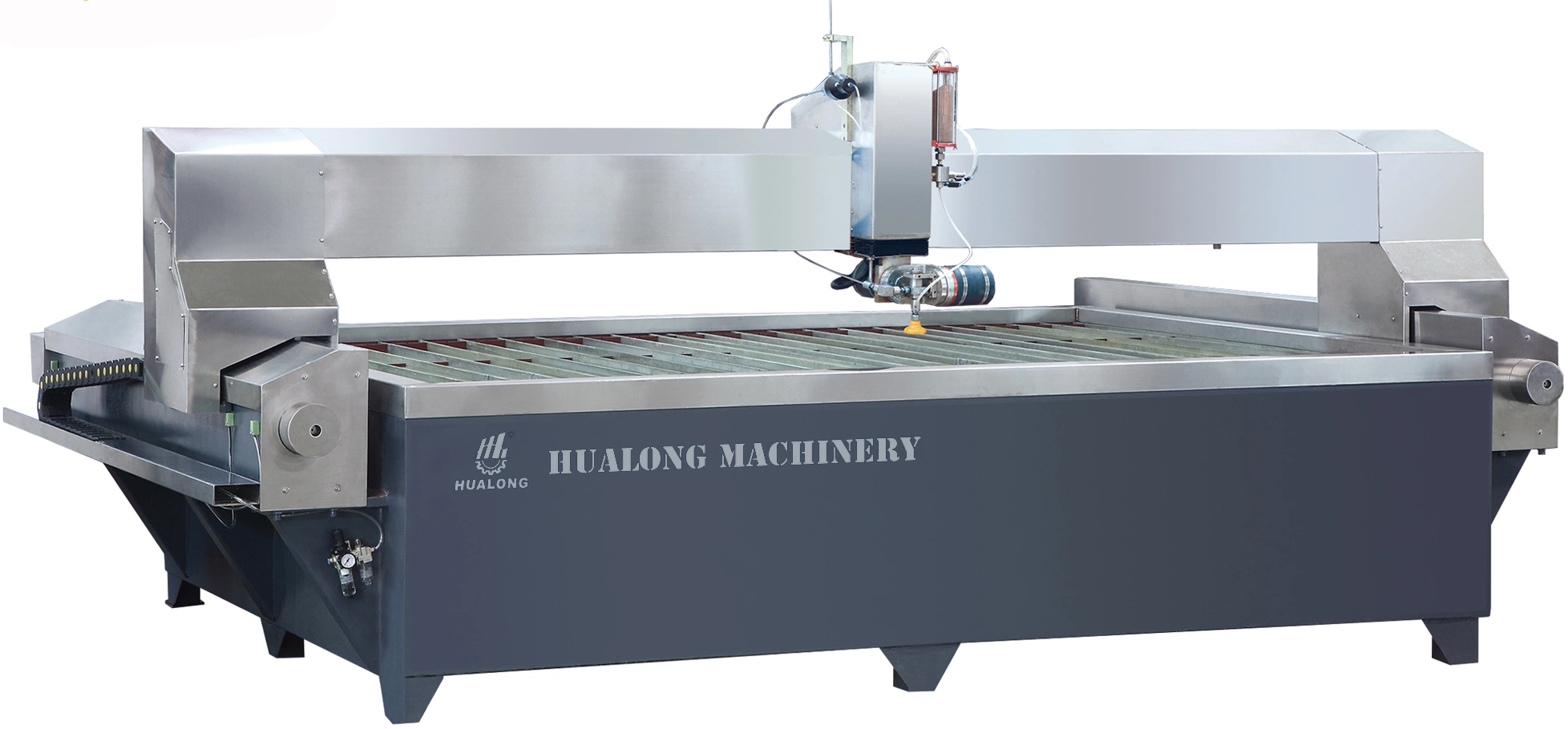

Hualong Stone Machinery Hlrc-3015 Marble/Tile CNC Five Axis Water Jet Cutting Machine

Product ApplicationFive-axis-bridge Water-jet Cutting Machine HLRC-3015  is a new type of CNC ultra-high pressure water jet cutting equipment, widely used in decorative building materials and aerospace, power, new energy, chemical, automotive and other industrial materials cutting and deep processing, such as: ceramics

Featured Products

Product Application

Five-axis-bridge Water-jet Cutting Machine HLRC-3015  is a new type of CNC ultra-high pressure water jet cutting equipment, widely used in decorative building materials and aerospace, power, new energy, chemical, automotive and other industrial materials cutting and deep processing, such as: ceramics, stone, glass, non-ferrous metals, ferrous metals and various types of plate (type) materials.

Hualong Stone Machinery Hlrc-3015 CNC 5-Axis Water Jet Cutting Machine for Marble /Ceramic Tile
Hualong Stone Machinery Hlrc-3015 CNC 5-Axis Water Jet Cutting Machine for Marble /Ceramic Tile
Hualong Stone Machinery Hlrc-3015 CNC 5-Axis Water Jet Cutting Machine for Marble /Ceramic Tile
Hualong Stone Machinery Hlrc-3015 CNC 5-Axis Water Jet Cutting Machine for Marble /Ceramic Tile
Technical Data for HLRC3015
Configuration
CNC controller
step shystem/ AC servo system
Power supply
220V/380V/415V AC, 50/60HZ
Cutting table size
mm
3100 x 1600
Stroke
X - axis
mm
3000
Y - axis
mm
1500
Z - axis
mm
80-130
A, B - axis
mm
+/- 10
Accuracy
Cutting
mm
+/- 0.1
Respeatability
mm
+/- 0.05
Speed
of Traverse
mm/min
6500/15000


Main Features

1)  Working table with oil-immersed structure: balll-screw and linear guide is working under oil. Free maintenance and greatly improve the  machine lifetime.

2)  Omni-directional cutting ability, can be arbitrary plane, curve cutting.

3)  Specially reinforced bed structure, so that the cutting head in high speed operation will not produce vibration, the whole machine running smoothly, cutting speed fast, high machining accuracy.

Hualong Stone Machinery Hlrc-3015 CNC 5-Axis Water Jet Cutting Machine for Marble /Ceramic Tile
Hualong Stone Machinery Hlrc-3015 CNC 5-Axis Water Jet Cutting Machine for Marble /Ceramic Tile
Our Service
Hualong Stone Machinery Hlrc-3015 CNC 5-Axis Water Jet Cutting Machine for Marble /Ceramic Tile

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

Hualong Stone Machinery Hlrc-3015 CNC 5-Axis Water Jet Cutting Machine for Marble /Ceramic Tile

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
